Lift Foil Stand installation guide

Before using the foil stand, read and follow all safety guidelines:

• Do not sit or stand on the stand.

• Only use the stand on a flat, stable surface.

• Keep hands clear of sharp foil edges during mounting.

• Always maintain control of the board when moving it.

• Do not use in moving vehicles.

• Keep away from excessive moisture to preserve the wood integrity.

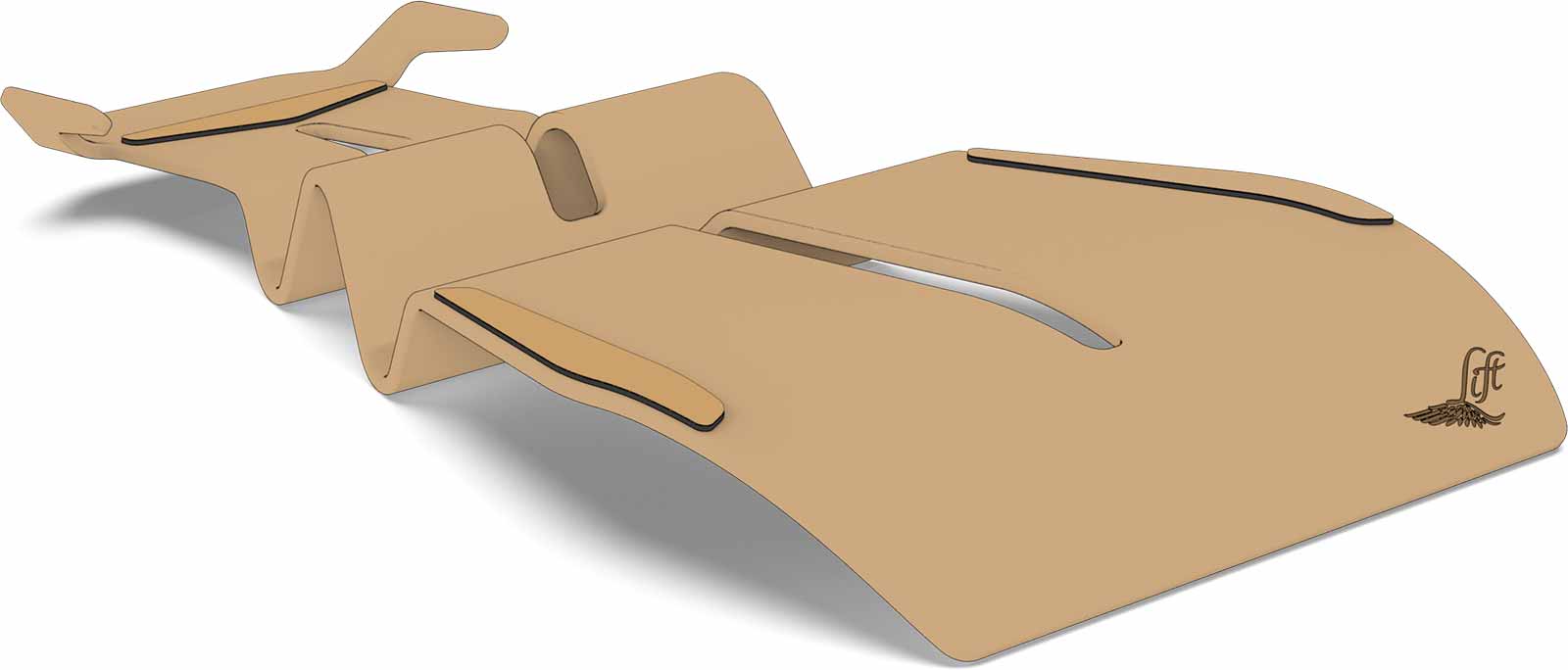

1. Position the stand.

• Place the stand on a flat, stable surface.

• Make sure the foam pads are facing upward and clean (no sand/debris).

2. **Lift and orient the board.**IMPORTANT: It is recommended to handle any eFoil board without the battery when mounting or dismounting the eFoil from the stand.

• Carry the board so the mast and wings are below the board.

• Keep the board level as you bring it toward the stand.

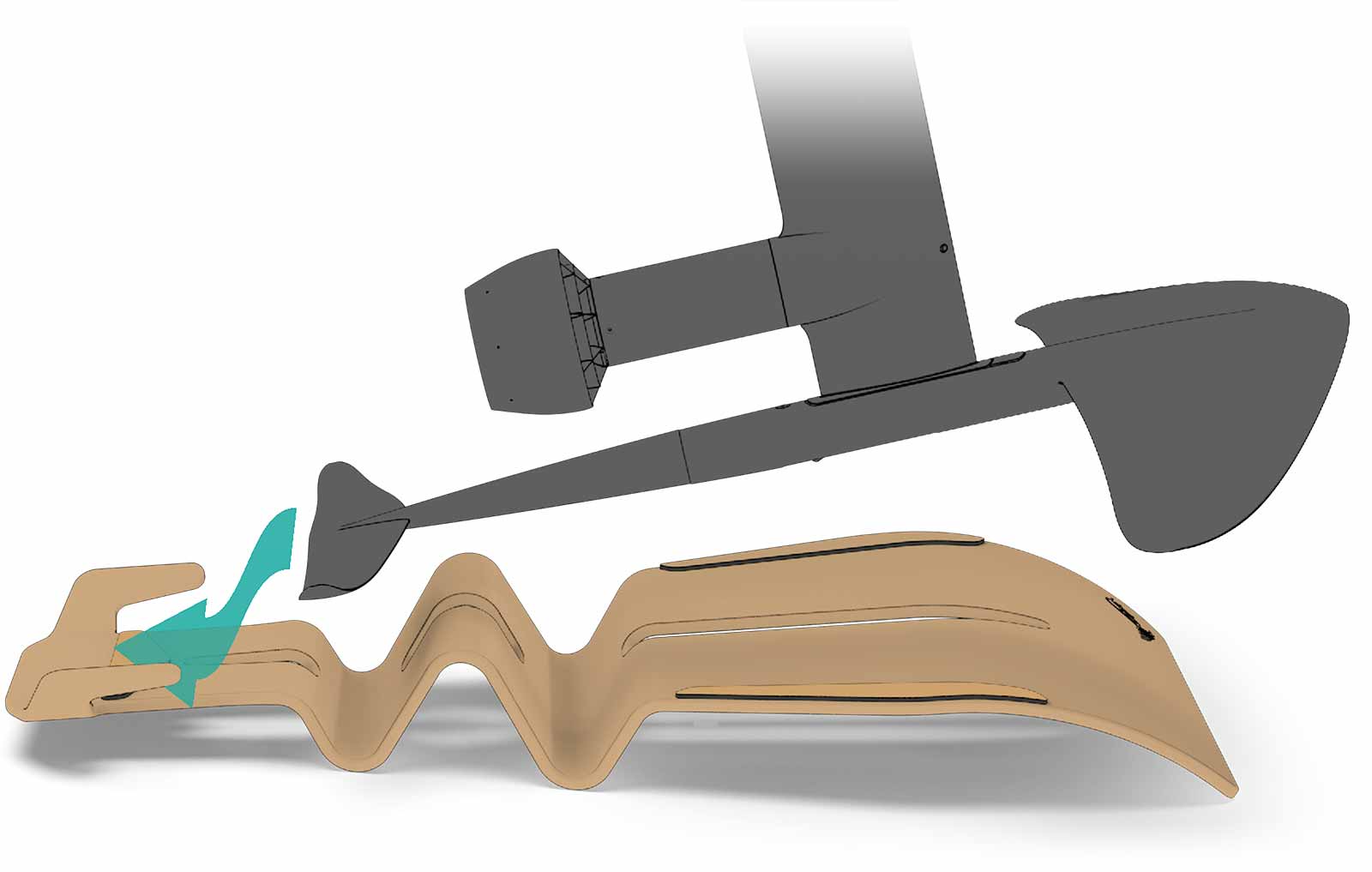

3. Engage the back wing into the stand hooks.

• Align and center the back wing with the stand’s hooks at the rear of the stand.

• Slide the back wing gently into the hooks as far back as possible.

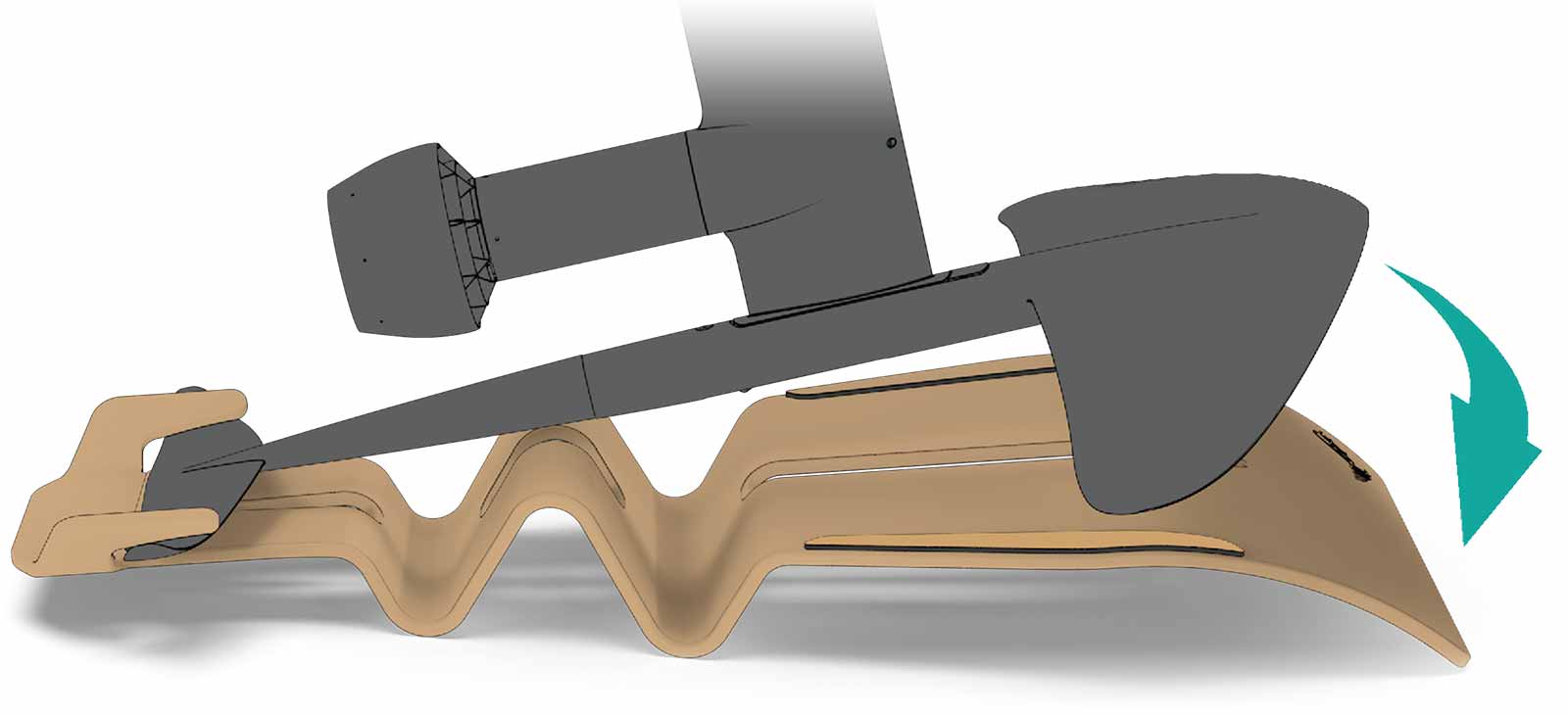

1. Lower the board onto the foam pads.

• Once the back wing is seated in the hooks, slowly lower the board.

• The front wings will set down and rest on the front foam pads

• You now have two contact points:

  • The back wing is supported by stand hooks.

  • The board is supported by the front pads.

  • The fuselage sits within the center channel of the stand.

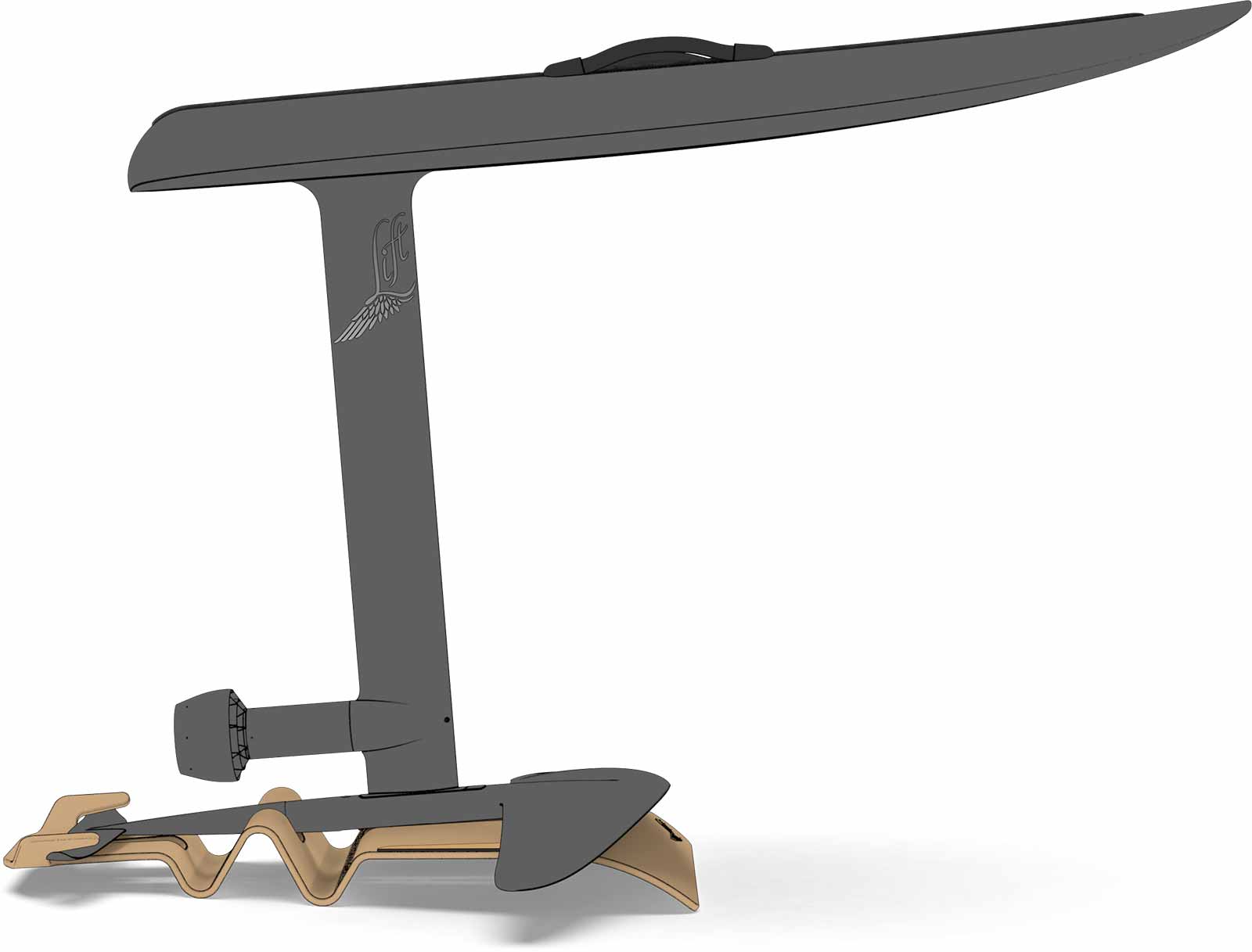

Foil Board Properly Installed

1. Hold the board securely with both hands.

2. Lift the board vertically and pull forward to clear the back wing out of the rear hooks.

3. Move the board clear and away from the stand.

IMPORTANT: It is recommended to mount or dismount the eFoil board on the stand without the battery installed (into the board).

• Store indoors, avoiding prolonged exposure to water or high humidity.

• If exposed to saltwater, rinse the stand lightly with fresh water. Towel dry immediately.

• Do not leave submerged or wet for extended periods.

• Keep away from extreme heat to prevent warping the wood.

• Clean with a damp cloth and mild soap if needed.

• Periodically inspect for:

  • Cracks or splits in the wood.

  • Surface wear at contact points.

• Optional: Apply a wood-safe protective oil or sealant to maintain the stand’s finish.

ISSUE: The stand feels unstable.

POSSIBLE SOLUTION: Place on a level, solid surface.

ISSUE: The board is not sitting securely in the stand.

POSSIBLE SOLUTION: Reposition the back wing within the stand and check alignment.

ISSUE: The wood shows wear or dryness.

POSSIBLE SOLUTION: Apply wood conditioner or sealant to the stand.

• Material: Beechwood with a waterproof coating

• Construction: Single-piece

• Weight: 5.5 lbs. (2.5 kg)

• Compatibility: All Lift Foils mast and wing configurations

The Lift Foil Stand is intended for storage, display, and light maintenance use only. Improper use may result in damage to equipment or injury. Always handle foil components with care.
